Film/Video NTSC & PAL Synchronizing Control

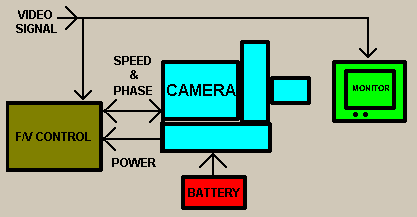

This F/V control unit automatically synchronizes the motion picture camera to any NTSC or PAL video monitors. When filming a monitor and the video signal is connected to BNC input, the control will set the camera speed and automatically phase the scan bar to the preset position for filming. This will provide scan bar free images without the need to phase each time the camera is turned on.

Specifications:

• Works with Arriflex, Aaton and Panavision cameras

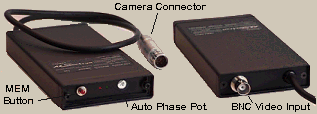

• BNC input connector for auto synchronization to a video monitor
• SYNC (green) and POWER (red) warning LEDs
• MEM calibration button and AUTO PHASE POT for calibration the F/V control to the motion picture camera
• Auto phase is accomplished in 2 seconds after the camera starts running
• Size: 5 x 2.7 x 0.75 inches
• Body: extruded aluminum (black)
• Power requirement: 10 to 24VDC (40mA)
