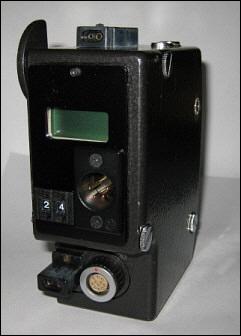

Crystal-Controlled Motor for the Bolex Cameras (Modified Original MST)

• Crystal speeds from 2 to 64 fps - decimal setting
• 2-digit pushbutton speed selector
• Forward/reverse operations
• Low battery indicator lights
• 4-pin XLR male power connector
• LCD two rows display; displays camera speed, footage and battery voltage
• 11-pin Fischer connector which accepts the external precision speed controls (ARRI compatible)

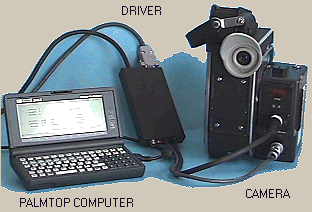

Computerized time lapse system for the Bolex camera.

The driver is connected to the crystal-controlled motor. An IBM compatible palmtop computer controls the system by using a standard serial port.

• Forward/reverse operations
• Frame counters and timers displayed on the computer screen
• Intervals from 0.01 sec to infinity at 0.01 sec increments
• Exposure from 0.12 sec to infinity at 0.01 sec increments
• Selection of 1 to 32768 frames per pulse (package)
• Intervals, exposure and package can be used at constant or variable modes; can be correlated to the last frame with mathematical functions (linear, exp, log). Correlation to the intensity of light, to the frame counters and to the daily time is optional.

This item is sold by:
DU-ALL CAMERA
231 W 29th St. #210
New York, NY 10001, USA
Tel # (212) 643-1042 Fax# (212) 643-9335

Internal Crystal Speed Control for the Bolex EBM Camera

• Crystal speeds from 4 to 60 fps in 1fps increments

• 2-digit push button decimal speed selector

• Forward / reverse operations

• Power requirement: 12 V DC

• This unit completely replaces the old electronics
  of the Bolex EBM camera.
