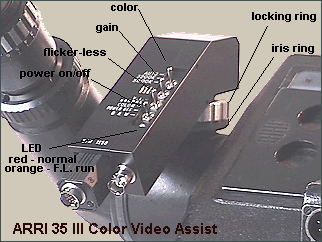

Flickerless CCD Color Video Assist Plus (Digital Shutter & Gain Control)

Specifications

• Signal system : NTSC, PAL standard
• Picture elements- NTSC: 768(H) x 494(V), PAL: 752(H) x 582(V)
• Scanning system: NTSC - 525 lines, PAL - 625 lines, 2:1 interlace
• Sync system: Internal/external (switched automatically)
• Flicker reduction: PAL- 70%, NTSC- 60% for 24fps, flicker free for 30fps.
• Min. illumination: 4 lux, F1.2 AGC: ON
• Video signal to noise ratio: more than 48 dB, AGC: OFF
• White balance: ATW(auto), 3200K and 5600K
• Digital Electronic Shutter Control (push button decimal switch): "0"-1/60, "1"-1/125, "2"-1/250, "3"-1/500, "4"-1/1000, "5"-1/2000, "6"-1/4000, "7"-1/10000, "8"-1/60 Flickerless, "9"-1/125s Flickerless.
• Digital Gain Control (push button decimal switch) - 2 modes selectable: "0" AGC and "1..9" gain 0-20dB
• Video signal mode: Color or B&W
• Two color LED control: red - power on, green - flickerless mode
• BNC video signal output
• Power requirement: 12 V DC
• Power consumption: 3.2W (270mA)
• Body: Black anodize aluminum

We can make this video assist with a few different housings, depending on the specified mounting position on the camera.
