CCD Video Assist for the Arriflex 16BL

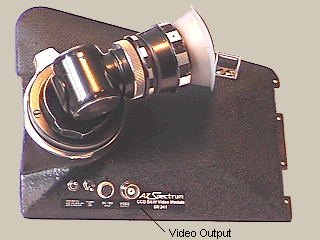

For the Arriflex 16BL, we have both a CCD B&W and a color video assist. It is installed inside the camera door and allows you to look through the viewfinder and display the picture from the video assist on a monitor at the same time. This unit has an on/off power switch, AGC/CCD auto iris switch and a BNC video output connector. For the installation, you have to send us just the camera door. It is easy to remove the door from the body. You have to open the door, remove the 4 screws, and slide the door off from the hinge.

Specifications for the color unit:

• SONY CCD image sensor
• Picture elements: NTSC 768(H) x 494(V), PAL 752(H) x 582(V)
• Scanning system: 2:1 Interlace
• Horizontal resolution: 470 TV lines
• Video output: 1.0V p-p composite video at 75 ohm
• BNC video output connector
• Min. illumination: 0.8 Lux, F1.2 AGC: ON
• Auto white balance (AWB)
• AGC/CCD IRIS control switch: 3 position switch which controls the CCD IRIS and AGC on/off
  - Lower: AGC control is OFF (0dB) and CCD IRIS control is OFF
  - Middle: AGC control (max 14dB) is ON and CCD IRIS control is OFF. Use this setting when the monitor image is underexposed (low light level).
  - Upper: AGC control is OFF (0dB) and CCD IRIS control is ON. Use this setting when the monitor image is overexposed (intense light conditions, outdoors a sunny day).
• LED power indicator
• Power on/off switch: when in upper position, the video power is ON and the red LED is lit; when in lower position, the video power is OFF and the red LED is not lit.
• Power requirement: 12V DC
• Power consumption: 2.4W (200mA)
• Operating temperature -5 to +113°F (-20 to +45°C)

Specifications for the color unit with on screen display (OSD) control (APEX door only):

• SONY CCD image sensor
• Picture elements: 811 (H) x 508 (V) NTSC
• Scanning system: 2:1 Interlace
• Horizontal resolution: 470 TV lines
• Video output: 1.0V p-p composite video at 75 ohm
• BNC video output connector
• Min. illumination: 0.8 Lux (F=1.2)
• Brightness, Chroma, Tint, Sharpness by OSD Control
• White balance Auto/Fix (3200-10000K)
• Gain control: AGC on/off
• Iris control: CCD Iris on/off
• Electronic shutter 1/60-1/120,000s
• BLC function on/off
• Digital Zoom on/off
• Gamma correction: 0.45
• Power requirement: 12V DC
• Power consumption: 1.8W (150mA)
• Power ON/OFF switch
• LED power indicator
• Operating temperature -5 to +113°F (-20 to +45°C)

Specifications for the B&W unit:

• SONY CCD image sensor
• Signal system: EIA or CCIR
• Picture elements: 512(H) x 492(V)(EIA)
• Scanning system: 2:1 Interlace
• Horizontal resolution: 420 TV lines
• Video output: 1.0V p-p composite video at 75 ohm
• BNC video output connector
• Min. illumination: 0.1 Lux (F/1.4)
• AGC/CCD IRIS control switch: 3 position switch which controls the CCD IRIS and AGC on/off
  - Lower: AGC control is OFF (0dB) and CCD IRIS control is OFF
  - Middle: AGC control (max 14dB) is ON and CCD IRIS control is OFF. Use this setting when the monitor image is underexposed (low light level).
  - Upper: AGC control is OFF (0dB) and CCD IRIS control is ON. Use this setting when the monitor image is overexposed (intense light conditions, outdoors a sunny day).
• LED power indicator
• Power on/off switch: when in upper position, the video power is ON and the red LED is lit; when in lower position, the video power is OFF and the red LED is not lit.
• Power requirement: 12V DC
• Power consumption: 1.4W (120mA)
• Operating temperature -5 to +113°F (-20 to +45°C)
